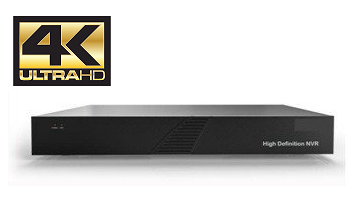

NVR6308S-1U4K

NVR6308S-1U4K

8CH 4K STANDALONE 1U NVR





  • 8CH 4K video access, 1U NVR case
  • H.265/H.264 dual-stream decoding
  • VGA/HDMI sync output, support 2160P HD preview
  • Standard ONVIF, RTSP
  • Support alarm snapshot, Email sending, support external alarm
  • Support DDNS, EMAIL, UPNP, NTP, P2P
  • Support real-time playback, in the preview screen to specify 1st passage of the current video playback, not affecting other channels’ preview
  • Support IPC SMART functions, including target counting, article inspecting, region detection, line crossing
  • Support grouping disk quota, disk group two storage pattern, allocating different video to save capacity or cycle for different channel
  • Support network detection (network traffic monitoring, network libpcap, Network unobstructed) function
  • Support max 8CH synchronous playback and multi-channel synchronous run backward
  • Support dual password authentication, and zero channel function

      MODEL

      NVR6308S-1U4K

      VIDEO

      Video input

      Max support 8CH 4K network video access

      Network input bandwidth

      80Mbps

      Video compression

      H.265/H.264/MJPEG

      Video resolution

      4K/5MP/3MP/1080P/960P/720P

      Video output

      HDMI output

      3840×2160、1920×1080,1280×1024

      Video bit rate

      16-8000Kbps

      Image display

      1/4/6/8/9 image display

      Snapshot

      Support timing screenshot、manual screenshot,JPEG format

      Motion detection

      396(22*18) surveyed area can be set in every screen and multi-sensitivity adjustable(but need IPC support)

      AUDIO

      Audio  compression

      G.711A

      Audio input

      IPC complex audio input

      VIDEO RECORDING AND PLAYBACK

      Video frame rate

      1-30fps

      Record mode

      Manual/external alarm/MD/timing/intelligent analysis alarm

      Sync playback

      Support 1CH 5MP/3MP, 4CH 1080P, 8CH sub stream sync playback

      Search method

      Time, calendar, event, channel

      Video playback

      Start, stop, fast play, slow play,single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback

      STORAGE AND BACKUP

      Interface

      2 SATA

      HDD capacity

      Single max.6T

      Backup location

      Local, network, NAS, IPSAN

      Backup method

      USB mobile hard disk, USB disk, network backup, USB record

      FUNCTION

      Network protocol

      TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF

      Interface protocol

      Onvif, RTSP

      Mobile surveillance

      Support Apple, Android

      Internet explorer

      Support IE, Chrome, Firefox, Safari

      Intelligent detection

      Support IPC’s intelligent/smart functions

      Other

      Support dual password authentication, zero passage

      EXT INTERFACE

      Network interface

      1 RJ45 10M/100M Ethernet port

      RJ45 power supply

      N/A

      Alarm input

      2CH

      Alarm output

      1CH

      RS-485

      Support

      USB port

      2, USB2.0

      GENERAL

      Operation temperature/ humidity

      -10°C ~ 55°C/10﹪-90﹪

      Power supply

      DC12V/4A (Power cord can be selected)

      Power consumption

      <10W (Without HDD)

      Dimension(mm)

      360(L)*242.4(W)*48(H) mm

      Weight/PCS(g)

      2 Kg



      1. Alarm Input

      5. VGA video Output

      2. Alarm Output

      6. HDMI video output

      3. RS485

      7. RJ45 network interface

      4. DC12V

      8. USB 2.0

      Firmware Upgrade to optimize performance for 4MP & 4K IPC

      File Version
      NVR_V1.2.2_171114_4M4KOptimal.update
