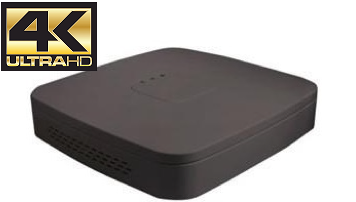

NVR4204T/P/4K

NVR4204T/P/4K

4 Channel Smart 1U 4*PoE 4K & H.265 NVR





  • 4CH 4K NVR with smart 1U Case
  • H.265/H.264 codec decoding
  • Up to 8MP Resolution for Preview & Playback
  • HDMI/GA simultaneous video output
  • Support IPC UPnP, 4*PoE ports
  • Support ANR technology to enhance the storage reliability when the network break down
  • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

        MODEL

        NVR4204T/P/4K

        SYSTEM

        Main processor

        Quad-core embedded processor

        Operating System

        Embedded Linux

        VIDEO

        Video input

        4 Channel

        Two-way Talk

        1 Channel Input, 1 Channel Output, RCA

        DISPLAY

        Interface

        1*HDMI (up to 3840x2160, difference source), 1*VGA

        Image resolution

        3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768

        Multi-screen Display

        1/4

        OSD

        Camera title, Time, Video loss, Camera lock, Motion detection, Recording

        VIDEO RECORDING

        Compression

        H.265 / H.264

        Resolution

        8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, etc.

        Record mode

        Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

        Record rate

        80Mbps

        Bit Rate

        16Kbps-20Mbps Per Channel

        Record Interval

        1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300sec

        VIDEO DETECTION AND ALARM

        Trigger Events

        Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

        Video Detection

        Motion Detection, MD Zones: 396 (22*18), Video Loss and Tampering

        Alarm Input

        N/A

        Relay Output



        N/A



        PLAYBACK AND BACKUP

        PLAYBACK

        1/4

        Search mode

        Time/Date, MD and Exact Search (accurate to second), Smart Search

        Playback Function

        Play, Pause, Stop, Rewind, Fast play, Slow play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

        Backup mode

        USB Device/Network

        NETWORK

        Network Function

        HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, IP, Easy4ip

        Interface

        1 RJ-45 Port (10/100Mbps)

        Ethernet Port

        1 Independent 100Mbps Ethernet Ports

        PoE

        4 ports (IEEE802.3at/af)(4Mbps is recommended per channel)

        Optical Fibre Interface

        N/A

        Max. User Access

        128 users

        Mobile surveillance

        iPhone, iPad, Android

        Interoperability

        ONVIF 2.4, CGI Conformant

        STORAGE

        INTERNAL HDD

        1 SATA III Ports, Up to 6TB capacity for each HDD

        HDD Mode

        Single

        EXT INTERFACE

        USB

        2 USB Ports (2 USB2.0)

        RS232

        N/A

        GENERAL

        Operation temperature

        -10°C ~ 55°C, 86+106kpa

        Power supply

        DC48V 1.5A

        Power consumption

        NVR: < 7.5W (Without HDD)

        PoE: Max 25.5w for single port, 50w in total

        Dimension(mm)

        Smart 1U, 204.6*204.6*45.6 mm

        Weight/PCS(g)

        1.5 Kg
