DVR5208A/CVI-S2

DVR5208A/CVI-S2

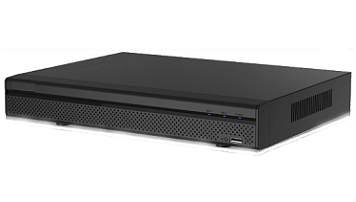

8 Channel 1080P HD-CVI Tribrid 1U DVR





  • HD-CVI/IP/Analogue Tribrid DVR
  • Support HDCVI/Analog/IP Video input
  • Up to 8 cameras with 1080p realtime preview
  • H.264 dual-stream video compression
  • All channel 720P realtime or 1080P non-realtime recording
  • HDMI / VGA/BNC simultaneous video output
  • All channel synchronous playback, GRID interface & smart search
  • Support 2 SATA HDD up to 8TB, 2 USB2.0
  • ONVIF Version 2.3 conformance
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

    Model

    DVR5208A/CVI-S2

    System

    Main Processor

    Embedded processor

    Operating System

    Embedded LINUX

    Video

    Input

    8 channel, BNC



    Standard

    HDCVI 1080P/720P HDCVI Camera
    Analog NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
    IP 1080P/720P/D1/CIF IP Camera

    Audio

    Input

    4 channel, BNC

    Output

    1 channel, BNC

    Two-way Talk

    Reuse audio input/output channel 1

    Display

    Interface

    1 HDMI, 1BNC

    Resolution

    1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

    Display Split

    1/4/8/9



    Privacy Masking

    4 rectangular zones (each camera)

    OSD

    Camera title, Time, Video loss, Camera lock, Motion detection, Recording

    Recording

    Video/Audio Compression

    H.264 / G.711

    Resolution

    1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)

    Record Rate

    Main Stream:

    1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

    Extra Stream

    CIF/QCIF(1~25/30fps)

    Bit Rate

    48~4096Kb/s

    Record Mode

    Manual, Schedule(Regular(Continuous), MD), Stop

    Record Interval

    1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

    Video Detection&Alarm

    Trigger Events

    Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

    Video Detection

    Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

    Alarm Input

    4 channel



    Alarm Output

    3 channel

    Playback & Backup

    Sync Playback

    1/4/9



    Search Mode

    Time/Date, MD & Exact search (accurate to second)

    Playback Functions

    Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera,

     Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

    Backup Mode

    USB Device / Network

    Network

    Ethernet

    RJ-45 port (10/100M)

    Network Functions

    HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE,

    DDNS, FTP, IP Filter

    Max. User Access

    128 users

    Smart Phone

    iPhone, iPad, Android, Windows Phone

    Storage

    Internal HDD

    2 SATA port, up to 8TB



    Auxiliary Interface

    USB Interface

    2 ports, USB2.0

    RS485

    1 port, For PTZ control

    General

    Power Supply

    AC 100~240 V, 50/60 Hz

    Power Consumption

    15W



    Working Environment

    -10 ~+55°C / 10~90%RH / 86~106kpa

    Dimension(W×D×H)

    1U, 375mm×285mm×5mm

    Weight

    2.35KG(without HDD)
