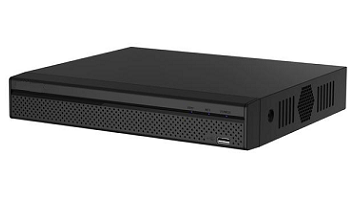

DVR4108HS/CVI-S2

DVR4108HS/CVI-S2

8 Channel 720P HD-CVI Tribrid DVR





      • Support HD-CVI/IP/Analogue video inputs
      • 264 dual-stream video compression
      • All channel 720P @12.5fps recording per channel
      • HDMI / VGA simultaneous video output
      • 4/8/16 channel synchronous playback, GRID interface & smart search
      • Support 1 SATA HDD up to 4TB, 2 USB2.0
      • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS



                              Model

                              DVR4108HS/CVI-S2

                              System

                              Main Processor

                              Embedded processor

                              Operating System

                              Embedded LINUX

                              Video

                              Input

                              8 channel, BNC

                                Standard

                              Analogue

                              PAL(625Line,50f/s)

                              HDCVI

                              720P HDCVI Camera

                              IP

                              1080P/720P/D1/CIF IP Camera

                              Audio

                              Input

                              1 channel, RCA

                              Output

                              1 channel, RCA

                              Two-way Talk

                              Reuse audio input/output channel 1

                              Display

                              Interface

                              1 HDMI, 1 VGA

                              Resolution

                              1920×1080, 1280×1024, 1280×720, 1024×768

                              Display Split

                              1/4/8/9

                              Privacy Masking

                              4 rectangular zones (each camera)

                              OSD

                              Camera title, Time, Video loss, Camera lock, Motion detection, Recording

                              Recording

                              Video/Audio Compression

                              H.264/G.711

                              Record Rate

                              Main Stream:

                              1*720P(1~25/30fps)+7*(1~15fps)/960H/D1 (1~25/30fps)

                              Extra Stream

                              CIF/QCIF(1~12/15fps)

                              Bit Rate

                              96~4096Kb/s

                              Record Mode

                              Manual, Schedule(Regular(Continuous), MD), Stop

                              Record Interval

                              1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

                              Video Detection

                              Trigger Events

                              Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

                              Video Detection

                              Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

                              Playback & Backup

                              Sync Playback

                              1/4/9

                              Search Mode

                              Time/Date, MD & Exact search (accurate to second)

                              Playback Functions

                              Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

                              Backup Mode

                              USB Device/Internal SATA burner/Network

                              Network

                              Ethernet

                              RJ-45 port (10/100M)

                              Network Functions

                              HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

                              Max. User Access

                              128 users

                              Smart Phone

                              iPhone, iPad, Android, Windows Phone

                              Storage

                              Internal HDD

                              1 SATA port, up to 4TB

                              Auxiliary Interface

                              USB Interface

                              2 ports(1 Rear), USB2.0

                              RS485

                              1 port, For PTZ Control

                              General

                              Power Supply

                              DC12V/1.5A

                              Power Consumption

                              10W(without HDD)

                              Working Environment

                              -10°C ~+55°C / 10%~90%RH / 86~106kpa

                              Dimension(W×D×H)

                              Compact 1U, 260mm×220mm×40mm

                              Weight

                              0.75KG(without HDD)

                              1.5KG(without HDD)
