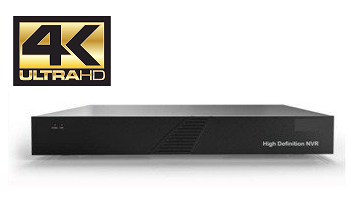

NVR6308S-1U4K/8P
- 8CH 4K video access, 1U NVR case
- H.265/H.264 dual-stream decoding
- VGA/HDMI sync output, support 2160P HD preview
- Standard ONVIF, RTSP
- Support alarm snapshot, Email sending, support external alarm
- Support 8ch standard PoE
- Support DDNS, EMAIL, UPNP, NTP, P2P
- Support real-time playback, in the preview screen to specify 1st passage of the current video playback, not affecting other channels’ preview
- Support IPC SMART functions, including target counting, article inspecting, region detection, line crossing
- Support grouping disk quota, disk group two storage pattern, allocating different video to save capacity or cycle for different channel
- Support network detection (network traffic monitoring, network wireshark, network clear) function
- Support max 8CH synchronous playback
- Support instant playback
|
MODEL |
NVR6308S-1U4K/8P |
|
VIDEO |
|
|
Video input |
Max support 8CH 4K network video access |
|
Network input bandwidth |
80Mbps |
|
Video compression |
H.265/H.264/MJPEG |
|
Video resolution |
4K/5MP/3MP/1080P/960P/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Video output |
HDMI output |
|
3840×2160、1920×1080,1280×1024 |
|
|
Video bit rate |
16-16000Kbps |
|
Image display |
1/4/6/8//9/16 image display |
|
Snapshot |
Support timing screenshot、manual screenshot，JPEG format |
|
Privacy mask |
Support 4 zones |
|
Motion detection |
396(22*18) surveyed area can be set in every screen and multi-sensitivity adjustable(but need IPC support） |
|
Intelligent detection |
Motion detection, video loss, video tampering, support PVHD IPC intelligent function |
|
AUDIO |
|
|
Audio compression |
G.711u |
|
Audio input |
IPC complex audio input |
|
Audio output |
1ch, RCA interface |
|
VIDEO RECORDING AND PLAYBACK |
|
|
Video frame rate |
1-30fps |
|
Record mode |
Manual/external alarm/MD/timing/intelligent analysis alarm |
|
Sync playback |
Support 1CH 4K/5MP/3MP, 4CH 1080P 16CH sub stream sync playback |
|
Search method |
Time, calendar, event, channel |
|
Playback mode |
Instant playback, Local video, Local image, External file playback |
|
Video playback |
Start, stop, fast play, slow play, single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback |
|
STORAGE AND BACKUP |
|
|
Interface |
2 SATA |
|
HDD capacity |
Single max.6TB |
|
Disk grouping |
According to video channels to set HDD quantity |
|
Disk quota |
According to video channels to set HDD storage capacity |
|
Backup location |
Local, network |
|
Backup method |
USB mobile hard disk, USB disk, network backup |
|
FUNCTION |
|
|
Network protocol |
TCP/IP, HTTP, HTTPS, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P |
|
Interface protocol |
Onvif, RTSP |
|
Mobile surveillance |
Support Apple, Android |
|
Internet explorer |
Support IE, Chrome, Firefox, Safari |
|
Intelligent detection |
Support IPC’s intelligent/smart functions |
|
Display function |
Channel shortcut: Instant Playback, 3D positioning, Show Smart Detection, Show Face Detection, Voice Intercom, Channel Audio |
|
DTPR: HDD Info, alarm info(arming/disarming), device list(display whether IPC online, record type, structure (customized channel classification, facilitate quick preview), group round touring, desktop menu can be hidden |
|
|
IPC timing |
Manual/Auto/Timing/Recconect Timing IPC Timing |
|
Alarm linkage |
Send email, audible warning (buzzer), alarm on monitor, upload to centre, record, snapshot, preview, PTZ linkage |
|
Network detection |
Flow monitoring, network wireshark, network test |
|
User management |
User add/delete/modify/permission management |
|
Auxiliary users (secondary password protection |
|
|
IPC management |
Modify IPC parameters, IPC upgrade |
|
EXT INTERFACE |
|
|
Network interface |
1 RJ45 10M/100M Ethernet port |
|
PoE interface |
8ch (IEEE 802.3af) |
|
Alarm input |
4CH |
|
Alarm output |
1CH |
|
RS-485 |
Support |
|
USB port |
2, USB2.0 |
|
GENERAL |
|
|
Operation temperature/ humidity |
-10°C ~ 55°C/10﹪-90﹪ |
|
Power supply |
DC48V/3A (Power cord can be selected) |
|
Power consumption |
<10W (Without HDD) |
|
Dimension(mm) |
360(L)*242.4(W)*48(H) mm |
|
Weight/PCS(g) |
2 Kg |
|
1. Alarm Input |
6. USB2.0 |
|
2. Alarm Output |
7. RJ45 network interface |
|
3. RS485 |
8. PoE interface |
|
4. Audio output |
9. DC48V |
|
5. HDMI video output |
|
Firmware Upgrade to optimize performance for 4MP & 4K IPC
| File Version |
| NVR_V1.2.2_171114_4M4KOptimal.update |
