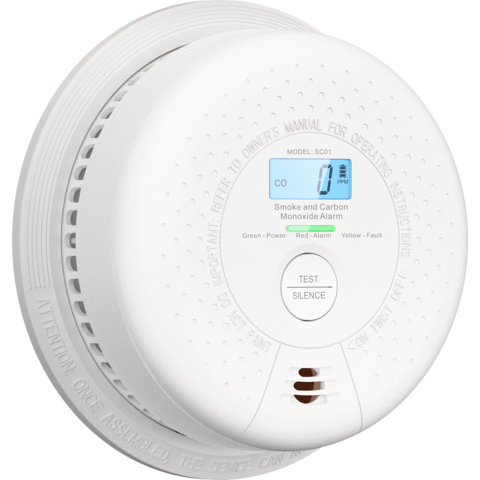

SC01
Features
- Real-time display of accurate CO concentration levels on the LCD.
- Detects both CO and smoke levels in the environment.
- High-capacity lithium battery for 10 years of reliable operation.
- Approved by the ETL and BSI.
- Extra loud buzzer with over 85 dB volume for guaranteed alarming.
- FIGARO® CO sensor for high sensitivity, accuracy and reliability.
- High-performance STMicroelectronics microcontroller.
| Sensor Type | Photoelectric smoke sensor and electrochemical CO sensor |
| Operating Voltage | 3.0 V DC |
| Battery Type | 3.0 V lithium battery |
| Standby Current | BAT1 < 6 uA; BAT2< 6 uA (The average static current is less than 6 uA during a 10-minute test. The BAT1 cannot be tested within 5 minutes after the alarm is turned on.) |
| Alarm Current | BAT1 < 5 mA; BAT2 < 60 mA |
| Alarm Priority | The smoke alarm takes precedence when both smoke and carbon monoxide are present. |
| Audibility Level | 〉85dB@3 m |
| Operating Ambient Temperature | 40 to 100 °F (4.4 to 37.8 °C) |
| Operating Relative Humidity | < 85% (non-condensing) |
| Safety Standards | EN14604&EN 50291 |
| Product Life | 10 years |
