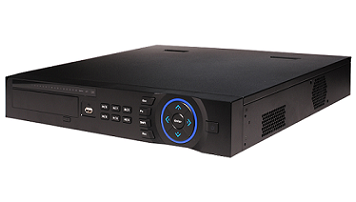

NVR4416T/16P
16CH 1080P 16-Port PoE NVR
- Up to 16ch IP camera input
- 264/MJPEG dual codec decoding
- 200Mbps incoming bandwidth
- Up to 5MP resolution preview & playback
- HDMI/VGA/TV simultaneous video output
- 16ch synchronous realtime playback, GRID interface
- ONVIF Version 2.4 conformance
- Support 4 SATA HDDs up to 16TB, 1*eSATA up to 16TB, 2*USB (1*USB3.0)
- Support IPC UPnP, 16*POE ports
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
|
MODEL |
NVR4416T/16P |
|
SYSTEM |
|
|
Main Processor |
Dual-core embedded processor |
|
Operation System |
Embedded LINUX |
|
VIDEO & AUDIO |
|
|
IP Camera Input |
16 channel |
|
2-Way Talk |
1ch Input, 1ch Output, RCA |
|
DISPLAY |
|
|
Interface |
1*HDMI, 1*VGA, 1*TV |
|
Resolution |
1920x1080, 1280x1024, 1280x720, 1024x768 |
|
Display Split |
1/4/8/9/19 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
RECORDING |
|
|
Compression |
H.264 / MJPEG |
|
Resolution |
5MP(2560*1920) / 3MP(2048*1536) / 1080P(1920*1080) / 720P(1280*720) / D1(704*480) |
|
Record Rate |
200Mbps |
|
Bit rate |
48-8192Kbps |
|
Record Mode |
Manual, Schedule(Regular(continuous), MD, Alarm), Stop |
|
Record interval |
1~120min(default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
VIDEO DETECTION & ALARM |
|
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank |
|
Alarm Input |
16 channel |
|
Relay Output |
4 channel |
|
PLAYBACK & BACKUP |
|
|
Sync. Playback |
1/4/9/16 |
|
Search Mode |
Time/Date, Alarm MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device/Network/Internal DVD-RW/eSATA Device |
|
NETWORK |
|
|
Ethernet |
1*RJ45 (10/100/1000M) |
|
PoE |
16 ports (IEEE802.3at/af) |
|
Network functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
|
Max. User Access |
128 users |
|
SmartPhone |
iPhone, iPad, Android, Windows Phone |
|
STORAGE |
|
|
Internal HDD |
4 SATA ports, up to 16TB |
|
External HDD |
1 eSATA port |
|
AUXILIARY INTERFACE |
|
|
USB |
2 ports (1 Rear USB3.0, 1 Front USB2.0) |
|
RS232 |
1 port, For PC communication & keyboard |
|
RS485 |
1 port, For PTZ control |
|
GENERAL |
|
|
Power supply |
AC100V - 240V, 50/60Hz |
|
Power consumption |
NVR: 40W (without HDD) |
|
PoE: Max. 25.5W for single port |
|
|
Working Environment |
-10°C ~+55°C / 10%~90%RH / 86~106kpa |
|
Dimension |
1.5U, 440*410*70mm |
|
Weight |
6kg(without HDD) |
