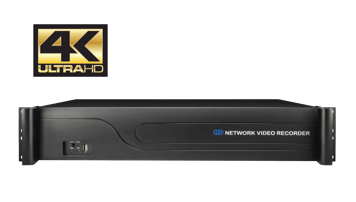

NVR6336-2U4K

NVR6336-2U4K





  • 36CH 4K full real-time network access, 2U NVR case
  • 264/H.264+ dual-stream decoding
  • VGA/HDMI sync output, support 2160P HD preview
  • Standard ONVIF, RTSP, GB28181 protocol
  • Support alarm  snapshot, Email sending
  • Support DDNS, EMAIL, UPNP, NTP, P2P
  • Support external alarm, dual network interfaces, 2-waytalk function
  • Support SMART IPC  target counting, materials detection, region detection, virtual cordon, voice alarm, numberplate black and white list, vehicle detection, facial detection, fire detection
  • Dual Gigabit LAN, support dual network IP setting these application
  • Support RAID0、RAID1、RAID5、RAID6& RAID10
  • Support network detection(network traffic monitoring, network libpcap, Network unobstructed) function
  • Support max 16CH synchronous playback and multi-channel synchronous run backward
  • Support dual password authentication
  • Support zero channel function

    MODEL

    NVR6336-2U4K

    VIDEO

    Video input

    Max support 36CH 4K(4096*2160)

    Video compression

    H.264/H.264+ (High Profile@Level4.2)

    Image resolution

    8MP/5MP/3MP/1080p/960p/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

    Video output

    VGA/HDMI sync output

    3840×2160、1920×1080,1280×1024

    Video bit rate

    16-8000Kbps

    Image display

    1/4/6/8/9/16/20/25/36 image display

    Snapshot

    Support timing screenshot、manual screenshot,JPEG format

    Motion detection

    396(22*18) surveyed area can be set in every screen and multi-sensitivity adjustable(but need IPC support)

    AUDIO

    Audio  compression

    G.711A

    Audio input

    IPC complex audio input

    Audio output

    1CH, RCA port

    Bidirectional talk input

    Bidirectional talk, RCA port

    VIDEO RECORDING AND PLAYBACK

    Video frame rate

    1-30fps

    Record mode

    Manual/external alarm/MD/timing/intelligent analysis alarm

    Sync playback

    Support 1CH 4K/ 16CH D1 sync playback

    Search method

    Time, calendar, event, channel

    Video playback

    Start, stop, fast play, slow play,single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback

    STORAGE AND BACKUP

    Interface

    8 SATA, 1 e-SATA

    HDD capacity

    Single max.6T

    Backup location

    Local,network,NAS,IPSAN

    Raid type

    Raid0、Raid1、Raid5、Raid6、Raid10、

    Backup method

    USB mobile hard disk, U disk, network backup, USB record

    FUNCTION

    Network protocol

    TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF

    Interface protocol

    Onvif, RTSP

    Mobile surveillance

    Support Apple, Android

    Internet explorer

    Support IE, Chrome, Firefox, Safiri

    Intelligent detection

    Target counting、materials detection、region detection、virtual cordon、voice alarm、license plate black and white list、license plate detection、face detection、fire detection、videognosis、scene change、motion detection、video loss、video privacy、alarm privacy

    Other

    Support dual password authentication, zero passage

    EXT INTERFACE

    Network interface

    2 RJ45 10M/100M/1000M adaptive Ethernet port

    RJ45 power supply

    N/A

    Alarm input

    4CH

    Alarm output

    4CH

    RS-485

    Support

    USB port

    2, USB2.0, 1, USB3.0

    GENERAL

    Operation temperature/ humidity

    -10°C ~ 55°C/10﹪-90﹪

    Power supply

    AC100~240V, 47Hz~63Hz(Power plug can be selected)

    Power consumption

    35W (Without HDD)

    Dimension(mm)

    440(H)*432(W)*90(H) mm

    Weight/PCS(g)

    7 Kg





    1. LAN1

    8. AC220V power supply port

    2. LAN2

    9. Power supply

    3. Audio output

    10. Alarm output

    4. VGA video output

    11. Alarm input

    5. HDMI video output

    12. e-SATA

    6. 3.0 USB

    13. Audio input

    7. RS485 port

    14. 2.0 USB
