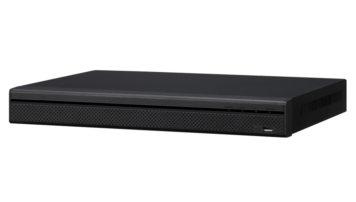

XVR5116HS/CVI-S2

XVR5116HS/CVI-S2

16 Channel 1080P Penta-brid Mini DVR





  • Support AHD/HD-CVI/TVI/IP/CVBS video inputs
  • 264+/H.264 dual-stream video compression
  • All channel 2MP@15fps recording per channel
  • 16+8 channels IP camera inputs, each channel up to 5MP, max.96Mbps incoming bandwidth
  • HDMI / VGA simultaneous video output
  • 16channel synchronous playback, smart search & Intelligent Video System
  • Support 1 SATA HDD up to 8TB
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS



                Model

                XVR5116HS/CVI-S2

                System

                Main Processor

                Embedded Processor

                Operating System

                Embedded LINUX

                Video and Audio

                Analog Camera Input

                16 Channel, BNC

                IP Camera Input

                16+8 Channel, each channel up to 5MP

                Audio In/Out

                1/1, RCA

                Two-way Talk

                Reuse audio in/out, RCA

                Recording

                Compression

                H.264+/H.264

                Resolution

                1080P,1080N, 720P, 960H, D1, CIF, QCIF

                Record Rate

                Main stream:

                1080P(1~15fps); 720P/960H/D1/CIF/QCIF (1~25/30fps)

                Sub steram: D1/CIF/QCIF(1~25/30fps)

                Bit Rate

                1Kbps ~ 6144Kbps Per Channel

                Record Mode

                Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

                Record Interval

                1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

                Display

                Interface

                1 HDMI, 1 VGA

                Resolution

                1920×1080, 1280×1024, 1280×720, 1024×768

                Multi-screen Display

                1/4/8/9/16/25

                OSD

                Camera title, Time, Video loss, Camera lock, Motion detection, Recording

                Network

                Interface

                1 RJ-45 Port (100M)

                Network Function

                HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)

                Max. User Access

                128 users

                Smart Phone

                iPhone, iPad, Android

                Interoperability

                ONVIF 2.42, CGI Conformant

                Video Detection and Alarm

                Trigger Events

                Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

                Video Detection

                Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

                Alarm input

                N/A

                Relay Output

                N/A

                Playback and Backup

                Playback

                1/4/9/16

                Search Mode

                Time /Date, Alarm, MD and Exact Search (accurate to second)

                Playback Function

                Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

                Backup Mode

                USB Device/Network

                Storage

                Internal HDD

                1 SATA Port, up to 8TB capacity

                eSATA

                N/A

                Auxiliary Interface

                USB

                2 USB Ports (1 USB 2.0, 1 USB 3.0)

                RS232

                N/A

                RS485

                1 Port, for PTZ Control

                Electrical

                Power Supply

                DC12V/2A

                Power Consumption

                <10W (Without HDD)

                Construction

                Dimensions

                Compact 1U, 260×236×48mm(10.2"×9.3"×1.9")

                Net Weight

                1.5kg ( 3.3lb) (without HDD)

                Environmental

                Operating Conditions

                -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

                Storage Conditions

                -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
