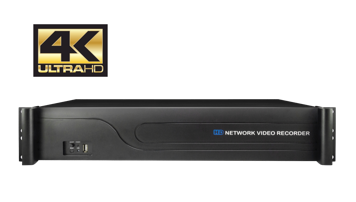

NVR6336S-2U4K/16P
- 36CH 4K 2U NVR
- H.265/H.264 dual-stream decoding
- VGA/HDMI sync output, support 2160P HD preview
- 16CH PoE built-in
- Standard ONVIF, RTSP
- Support DDNS, EMAIL, UPNP, NTP, P2P
- Support external alarm, dual network interfaces, 2-way talk function
- Support SMART IPC target counting, article inspecting, region detection, line crossing
- Support RAID0、RAID1、RAID5、RAID6 & RAID10
- Support grouping disk quota, and disk inventory two storage pattern, distributing different video storage capacity or cycle according to different channel
- Support network detection (network flow monitoring, network wireshark, network clear) function
- Support max 16CH synchronous playback and multi-channel synchronous run backward
- Support instant playback
|
MODEL |
NVR6336S-2U4K/16P |
|
VIDEO |
|
|
Video input |
Max support 36CH 4K(4096*2160） |
|
Network Bandwidth |
216Mbps |
|
Video compression |
H.265/H.264/MJEPG |
|
Image resolution |
4K/5MP/3MP/1080P/960P/720P |
|
Video output |
VGA/HDMI sync output |
|
3840×2160、1920×1080,1280×1024 |
|
|
Video bit rate |
16-8000Kbps |
|
Image display |
1/4/6/8/9/16/25/36 image display |
|
Snapshot |
Support timing screenshot, manual snapshot, JPEG format |
|
Motion detection |
396(22*18) surveyed area can be set in every screen and multi-sensitivity adjustable(but need IPC support） |
|
Privacy mask |
Support 4 zones |
|
Intelligent detection |
Target counting, article inspecting, region detection, line crossing, motion detection, video loss, video tampering Support PVHD Smart IPC intelligent function |
|
AUDIO |
|
|
Audio compression |
G.711u |
|
Audio input |
1CH, RCA port |
|
Audio output |
1CH, RCA port |
|
Bidirectional talk input |
Bidirectional talk, RCA port |
|
VIDEO RECORDING AND PLAYBACK |
|
|
Video frame rate |
1-30fps |
|
Record mode |
Manual/external alarm/MD/timing/intelligent analysis alarm |
|
Sync playback |
Support 4CH 4K/5MP, 9CH 3MP, 16CH 1080P sync playback |
|
Playback mode |
Instant playback, local video, local image, external file playback |
|
Search method |
Time, calendar, event, channel |
|
Video playback |
Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast, play (1-256X), slow play (1-1/32X),single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback |
|
STORAGE AND BACKUP |
|
|
Interface |
8 SATA, 1 e-SATA |
|
HDD capacity |
Single max.6T(per HDD) |
|
Backup location |
Local, Network, NAS, IPSAN |
|
Raid type |
Raid0、Raid1、Raid5、Raid6、Raid10 |
|
Backup method |
USB mobile hard disk, USB disk, network backup, USB record |
|
FUNCTION |
|
|
Network protocol |
TCP/IP, HTTP, HTTPS, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P |
|
Interface protocol |
Onvif, RTSP |
|
Protocol port |
Onvif/RTSP/HTTP/HTTPS/RTMP port cutsomized |
|
Mobile surveillance |
Support iOS, Android |
|
Internet explorer |
Support IE, Chrome, Firefox, Safari |
|
Display function |
Channel shortcuts：Instant playback, 3D positioning, show smart detection, show face detection, voice intercom, channel audio |
|
DTPR：HDD Info, alarm info(arming/disarming), device list(display whether IPC online, record type, structure (customized channel classification, facilitate quick preview), group round touring, desktop menu can be hidden |
|
|
Intelligent detection |
Target counting, article inspecting, region detection, virtual cordon, voice alarm, fire detection, videognosis, scene change, intelligent motion detection, video loss, video privacy, alarm privacy |
|
IPC timing |
Manual/Auto/Timing/Reconnect timming to IPC timing |
|
Network detection |
Flow monitoring, network wireshark, network test |
|
User management |
User ADD/Delete/Modify/Permission management |
|
Auxiliary users (secondary password protection) |
|
|
Manage IPC |
Modify IPC parameters, IPC upgrade |
|
EXT INTERFACE |
|
|
Network interface |
1 RJ45 10M/100M/1000M adaptive Ethernet port |
|
PoE interface |
16CH |
|
Alarm input |
4CH |
|
Alarm output |
1CH |
|
RS-485 |
1CH |
|
USB port |
Front Panel: 1*USB2.0 ; Rear Panel: 1*USB2.0 & 1*USB3.0 |
|
GENERAL |
|
|
Operation temperature/ humidity |
-10°C ~ 55°C/10﹪-90﹪ |
|
Power supply |
AC100～240V, 50Hz～60Hz |
|
Power consumption |
≤ 35W (Without HDD) |
|
Dimension(mm) |
440(H)*432(W)*90(H) mm |
|
Weight/PCS(g) |
7 Kg |
|
1. PoE port |
8. RS485 interface |
|
2. RJ45 network interface / USB2.0 |
9. Power switch |
|
3. Audio output |
10. AC240V power interface |
|
4. HDMI video output |
11. VGA video output |
|
5. USB3.0 |
12. Audio input |
|
6. Alarm input |
13. e-SATA |
|
7. Alarm output |
|
