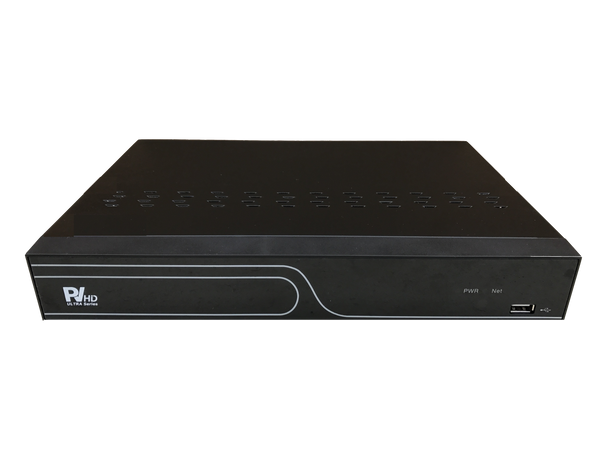

NVR6308S-MA/4P
- Max. 8CH 5MP full real-time video access, mini 1U NVR case
- H.264 dual-stream decoding
- 4*PoE ports
- VGA/HDMI sync output, support 1080P HD preview
- Standard ONVIF, RTSP
- Support alarm snapshot, Email sending, support external alarm
- Support DDNS, EMAIL, UPNP, NTP, P2P
- Support IPC SMART functions, including target counting, article inspecting, region detection, line crossing
- Support grouping disk quota, disk group two storage pattern, allocating different video to save capacity or cycle for different channel
- Support network detection (network traffic monitoring, network libpcap, Network unobstructed) function
- Support max 8CH synchronous playback and multi-channel synchronous run backward
- Support dual password authentication, and zero channel function
- Support channel grouping, preview round tour
- Support instant playback
|
MODEL |
NVR6308S-MA/4P |
|
VIDEO |
|
|
Video input |
Max support 8CH 5MP network video access |
|
Network input bandwidth |
60Mbps |
|
Video compression |
H.264/MJPEG |
|
Video resolution |
5MP/3MP/1080P/960P/720P |
|
Video output |
HDMI/VGA output |
|
1920×1080,1280×1024 |
|
|
Video bit rate |
16-8000Kbps |
|
Image display |
1/4/6/8/9 image display |
|
Snapshot |
Support timing screenshot、manual screenshot，JPEG format |
|
Motion detection |
396(22*18) surveyed area can be set in every screen and multi-sensitivity adjustable(but need IPC support） |
|
AUDIO |
|
|
Audio compression |
G.711A |
|
Audio input |
IPC complex audio input |
|
VIDEO RECORDING AND PLAYBACK |
|
|
Video frame rate |
1-30fps |
|
Record mode |
Manual/external alarm/MD/timing/intelligent analysis alarm |
|
Sync playback |
Support 1CH 5MP/3MP, 4CH 1080P, 8CH sub stream sync playback |
|
Playback mode |
Regular/Instant Reply/Event/External File |
|
Search method |
Time, calendar, event, channel |
|
Video playback |
Start, stop, fast play, slow play,single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback |
|
STORAGE AND BACKUP |
|
|
Interface |
1 SATA |
|
HDD capacity |
Single max.6T |
|
Backup location |
Local, network, NAS, IPSAN |
|
Backup method |
USB mobile hard disk, USB disk, network backup |
|
FUNCTION |
|
|
Network protocol |
TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF |
|
Interface protocol |
Onvif, RTSP |
|
Mobile surveillance |
Support Apple, Android |
|
Internet explorer |
Support IE, Chrome, Firefox, Safari |
|
Intelligent detection |
Support IPC’s intelligent/smart functions |
|
Other |
Support dual password authentication, zero passage |
|
EXT INTERFACE |
|
|
Network interface |
1 RJ45 10M/100M Ethernet port |
|
RJ45 power supply |
4*PoE ports |
|
Alarm input |
2CH |
|
Alarm output |
1CH |
|
RS-485 |
Support |
|
USB port |
2, USB2.0 |
|
GENERAL |
|
|
Operation temperature/ humidity |
-10°C ~ 55°C/10﹪-90﹪ |
|
Power supply |
DC48V/1.2A (Power cord can be selected) |
|
Power consumption |
<10W (Without HDD) |
|
Dimension(mm) |
300(L)*209(W)*48(H) mm |
|
Weight/PCS(g) |
2 Kg |
| 1. DC48V | 2. PoE power supply interface |
| 3. USB2.0 | 4. RJ45 network interface |
| 5. HDMI video output | 6. VGA video output |
| 7. RS485 | 8. Alarm output |
| 9. Alarm input |
