K-NVR6308-8D7

8CH 720P Realtime NVR Kit

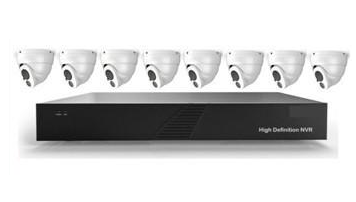

  • 8×720P IR network camera + 8×20 M network cable + 1U NVR kit
  • H.264 dual-stream, Linux operation system
  • IP cameras get power from NVR via network cable
  • Standard ONVIF, snapshot, alarm link E-mail send
  • Support synchronic video, playback, remote monitor, storage
  • Support 15 times electronic zoom preview and palyback image
  • One push to connect IPC automatically, plug and play
  • Support Timing synchronization manually and automatically, drag & drop any channel random
  • VGA/HDMI sync output, support 1080P HD preview
  • Support DDNS, ONVIF, EMAIL, UPNP, NTP
  • Support WEB, mobile surveillence, client, CMS
  • Lighting-proof, IP66, RJ45

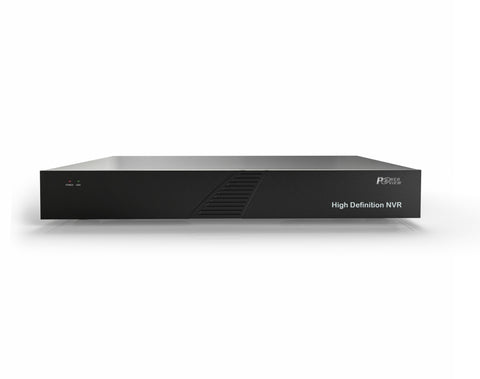

MODEL K-NVR6308-8D7

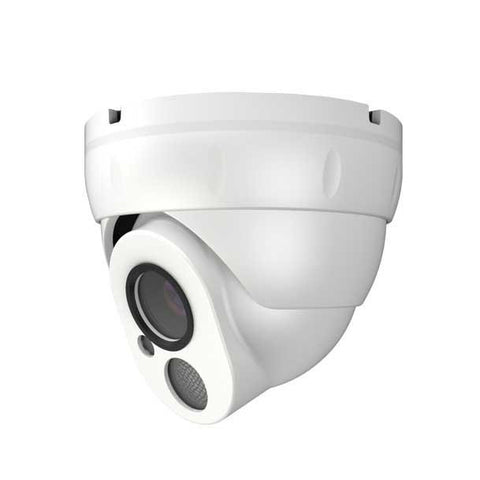

Camera
Model IPN-IDF51C/036D/P-W
Pick-up Devices 1/3" SONY progressive scan 1.3MP CMOS
Effective Pixel 1280(H)×720(V)
Min. illumination 0 Lux (IR ON)
Electronic shutter Auto/1/25s-1/10000s
Day/Night EXT trigger, ICR
Lens 3.6mm M12 5M Lens, ICR Model
IR Distance 10-15M (1×IR III IR Leds)
Video parameter DWDR, Mirror, 3DNR, Sharpness/Brighrness adjustable
VIDEO
Video Input 4CH 720P
Video compression H.264 (High Profile@Level4.2)
Video Input Resolution 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Video Output VGA/HDMI sync output, 1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600
Bit Rate 16-8000Kbps
Image Display 1/4/9
Snapshoot Support (BMP)
Motion Detection 396 (22×18) surveyed area can be set in every screen and multi sensitivity adjustable (Need IPC supported)
VIDEO RECORDING AND PLAYBACK
Video Frame Rate 1-25fps
Record Mode Manual / Alarm / MD / Regular
Playback Synchronic 1CH 720P
Search Method Time, Calendar, Event, Channel
Video Playback Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen,Roller amplification time ball precise playback
VIDEO BACKUP
Interface 2 SATA
HDD Capacity Support up to 8TB
Backup location Local HDD, Network
Backup Method Network, USB storage device, USB recorder
NETWORK MANAGEMENT
Protocol TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPOE, UPNP, NTP, ONVIF, P2P
EXT INTERFACE
Network Interface RJ45 10M/100M adaptive Ethernet port
RJ45 8 CH, Connect IPC directly
Alarm 4 CH Input, 1 CH Output
RS-485 1 RS485 port, support FS-KT301 keyboard
USB Port 2 USB2.0, support WIFI/3G Extensions
GENERAL
Operation Temp And Humidity -10°C ~ 55°C/10﹪-90﹪
Power supply DC15V/5A (Power plug can be select)
Power Consumption NVR:10W(Without HDD) , IPC:6W(IR ON)
Unit Dimension(mm) NVR: L360×W 242×H 48 mm,
IPC: L166×W 66×H 66 mm
Weight NVR: 2Kg, camera: 540g

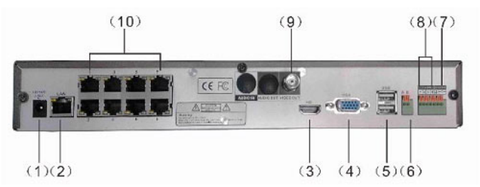

INTERFACE
1. DC15V
2. RJ45 Internet access
3. HDMI Video Output
4. VGA Video Output
5. USB2.0
6. RS485
7. alarm output
8. alarm input
9. RJ45 (connect IPC)
