K-NVR6308SP-4DA

2-Megapixel IP Dome CCTV Bundle Kit





  • NVR6308S-MA/4P 8CH 5MP full real time Mini 1U NVR kit with 4*PoE ports built-in
  • 4*IPN-IDF51C/036D/P-W & 4*20M cables included in the kit
  • NVR supports standard ONVIF, snapshot, alarm link E-mail send
  • VGA/HDMI sync output
  • Support DDNS, EMAIL, UPNP, NTP, P2P
  • Support WEB, mobile viewer, CMS

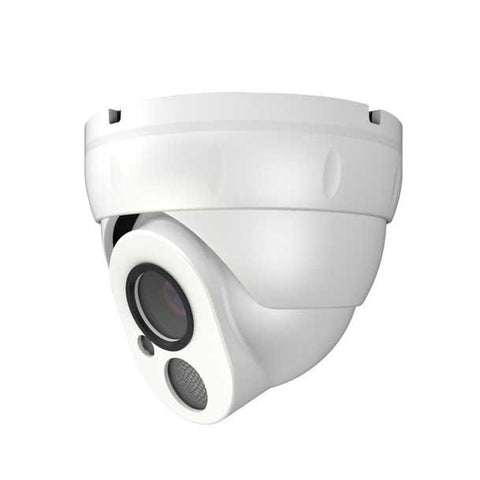

  • 2 Megapixel 1980x1080P HD camera included in the kit
  • Camera supports up to 15M IR distance, 3.6mm lens, PoE & DC12V
  • Camera features include DWDR, Mirror, Electronics Shutter, 3DNR



      MODEL

      K-NVR6308SP-4DA

      NVR

      Video input

      8 channel 5MP network video access

      Network input bandwidth

      60Mbps

      Video Compression

      H.264

      Video output

      HDMI/VGA

      1920x1080, 1440x900,1280x1024, 1280x720, 1024x768x 800x600

      Image display

      1/4/6/8/9

      Motion Detection

      396 (22*18)

      VIDEO RECORDING AND PLAYBACK

      Resolution

      5MP/3MP/1080P/960P/1080P

      Video Frame Rate

      1-30fps

      Bit rate

      16-8000Kbps

      Record mode

      Manual, External Alarm, MD, Timing, Intelligent Analysis Alarm

      Syn. playback

      1ch 5MP/3MP, 4ch 1080P, 8CH sub-stream sync playback

      Backup mode

      USB device/Network

      NETWORK

      Ethernet

      RJ45 (10/100M)

      Network functions

      TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF

      Interface protocol

      ONVIF, RTSP

      PoE Port

      4ch PoE

      Internal HDD

      1 SATA, up to 6TB

      Alarm Input/Output

      2CH / 1CH

      RS485

      Supported

      USB interface

      2 ports, USB2.0

      GENERAL



      Power supply

      DC48V 1.2A

      CAMERA

      Pick-up Devices

      1/2.9” SONY 2MP CMOS

      Effective Pixel

      1980 x 1080 @25fps

      Min. illumination

      0 Lux (IR ON)

      Electronic shutter

      Auto/ Manual(1/25~1/10000), FLK

      Day/Night

      ICR switch, Auto, Colour,  B/W, EXT

      Lens

      3.6mm

      IR distance

      15M

      Rear Panel
