K-NVR6304S-4BA

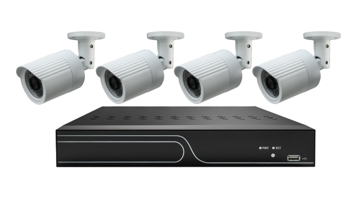

- 8CH 5MP full real time Mini 1U NVR kit with 1080P Full HD IP Camera
- IP cameras get power from NVR via network cable
- Standard ONVIF, snapshot, alarm link E-mail send
- Support synchronous video, playback, remote monitor, storage
- One push to connect IPC automatically, plug and play
- Support Timing synchronization manually and automatically, drag & drop any channel random
- VGA/HDMI sync output, support 1080P HD preview
- Support DDNS, EMAIL, UPNP, NTP, P2P
- Support WEB, mobile viewer, CMS
- Lighting-proof, RJ45
|
MODEL |
K-NVR6304S-4BA |
|
|
CAMERA |
||
|
Pick-up Devices |
1/2.9" SONY 2.07MP CMOS |
|
|
Effective Pixel |
1920(H) x 1080(V) |
|
|
Min. illumination |
0 Lux (IR ON) |
|
|
Electronic shutter |
Auto/ Manual(1/25~1/10000), FLK |
|
|
Day/Night |
ICR switch, Auto, Colour, B/W, EXT |
|
|
Lens |
3.6mm |
|
|
IR distance |
15M |
|
|
NVR |
||
|
Video input |
8 channel 5MP HD |
|
|
Video Compression |
H.264 |
|
|
Video output |
HDMI/VGA 1920x1080, 1440x900,1280x1024, 1280x720, 1024x768x 800x600 |
|
|
Image display |
1/4/9 |
|
|
Privacy masking |
4 rectangular zones (each camera) |
|
|
VIDEO RECORDING AND PLAYBACK |
||
|
Resolution |
1080P(1920*1080) / 720P (1280*720) / 960H(960*576) / D1 / 4CIF / QCIF |
|
|
Record rate |
|
|
|
Bit rate |
16-8000Kbps |
|
|
Record mode |
Manual, Alarm, MD, Regular |
|
|
Syn. playback |
4ch 1080P |
|
|
Backup mode |
USB device/Network |
|
|
NETWORK |
||
|
Ethernet |
RJ45 (10/100M) |
|
|
Network functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|
|
PoE Port |
4ch PoE |
|
|
Internal HDD |
1 SATA, up to 6TB |
|
|
USB interface |
2 ports, USB2.0 |
|
|
GENERAL |
|
|
|
Power supply |
DC48V 1.2A |
|
Rear Panel
