K-NVR6304-4B7

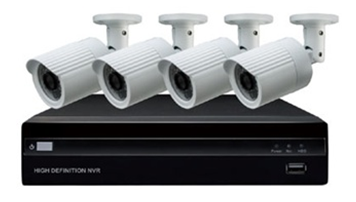

4CH 720P REALTIME IP KIT

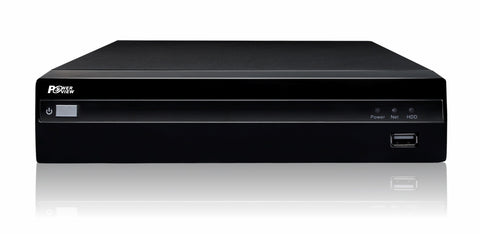

  • 4CH 720P full real time IP camera with Mini 1U NVR kit
  • H.264 compression, Linux operation system
  • IP cameras get power from NVR via network cable
  • Standard ONVIF, snapshot, alarm link E-mail send
  • Support synchronic video, playback, remote monitor, storage
  • Support 15 times electronic zoom preview and palyback image
  • One push to connect IPC automatically, plug and play
  • Support Timing synchronization manually and automatically, drag & drop any channel random
  • VGA/HDMI sync output, support 1080P HD preview
  • Support DDNS、EMAIL、UPNP、NTP
  • Support WEB, mobile viewer, CMS
  • Gimbal cable bracket included, Lighting-proof, IP66, RJ45



MODEL K-NVR6104-4B7
Camera
Model IPN-IB42C/036D
Pick-up Devices 1/4" progressive scan 1.3 MP CMOS
Effective Pixel 1280(H)×720(V)
Min. illumination 0 Lux (IR ON)
Electronic shutter Auto / 1/25s-1/10000s
Day/Night EXT trigger, ICR
Lens 3.6mm M12, ICR Model
IR Distance 10-15M (30×Φ5)
VIDEO
Video Input 4 CH 720P
Video compression H.264 (High Profile@Level4.2)
Video Input Resolution 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Video Output VGA/HDMI sync output,
1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600
Bit Rate 16-8000Kbps
Image Display 1/4
Snapshoot Support (BMP)
Motion Detection 396 (22×18) surveyed area can be set in every screen and multi sensitivity adjustable (Need IPC supported)
VIDEO RECORDING AND PLAYBACK
Video Frame Rate 1-30fps
Record Mode Manual / Alarm / MD / Regular
Playback Synchronic 4CH 720P
Search Method Time, Calendar, Event, Channel
Video Playback Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen, Roller amplification time ball precise playback
VIDEO BACKUP
Interface 1 SATA
HDD Capacity Support up to 4TB HDD
Backup location Local HDD, Network
Backup Method Network, USB storage device, USB recorder
NETWORK MANAGEMENT
Protocol TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, ONVIF
EXT INTERFACE
Network Interface RJ45 10M/100M adaptive Ethernet port
Alarm N/A
RS-485 1 RS485 port, support FS-KT301 keyboard
USB Port 2 USB2.0
GENERAL
Operation Temp And Humidity -10°C ~ 55°C / 10%-90%
Power supply DC15V/3A (Power plug can be select)
Power Consumption DVR: 10W (Without HDD), Camera: 6W (IR ON)
Unit Dimension (mm) (L)218 × (W)213 × (H)48
Weight NVR: 1Kg, IPC: 540g
INTERFACE
1. USB2.0 6. RS485
2. Audio Input 7. HDMI Video Oputput
3. DC12V Power supply 8. RJ45 Power supply to IPC
4. VGA Video Output 9. RJ45
5. Audio Output
