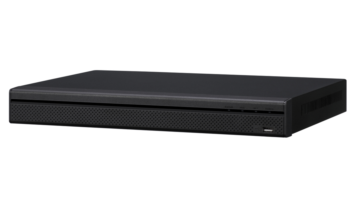

DVR7204A/CVI-S2
- Support HD-CVI/Analogue/IP video input
- Up to 4 cameras with 1080p realtime preview
- H.264 dual-stream video compression
- All channel 1080P realtime recording
- HDMI / VGA / TV simultaneous video output
- 4 channel synchronous playback, GRID interface & smart search
- Support 2 SATA HDD up to 8TB, 2 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
|
Model |
DVR-7204A/CVI-S2 |
|||||||||||||
|
System |
||||||||||||||
|
Main Processor |
Embedded processor |
|||||||||||||
|
Operating System |
Embedded LINUX |
|||||||||||||
|
Video |
||||||||||||||
|
Input |
4 channel, BNC |
|||||||||||||
|
Standard |
|
|||||||||||||
|
Audio |
||||||||||||||
|
Input |
4 channel, BNC |
|||||||||||||
|
Output |
1 channel,BNC |
|||||||||||||
|
Two-way Talk |
Reuse audio input/output channel 1 |
|||||||||||||
|
Display |
||||||||||||||
|
Interface |
1 HDMI, 1 VGA, 1BNC |
|||||||||||||
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
|||||||||||||
|
Display Split |
1/4 |
|||||||||||||
|
Privacy Masking |
4 rectangular zones (each camera) |
|||||||||||||
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|||||||||||||
|
Recording |
||||||||||||||
|
Video/Audio Compression |
H.264 / G.711 |
|||||||||||||
|
Resolution |
1080P(1920×1080/1920×900)/(720P(1280×720/1280×600)/960H (960×576/960×480)/D1/4CIF(704×576/704×480)/CIF (352×288/352×240)/QCIF(176×144/176×120) |
|||||||||||||
|
Record Rate |
Main Stream: |
1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
||||||||||||
|
Extra Stream |
CIF/QCIF(1~25/30fps) |
|||||||||||||
|
Bit Rate |
48~6144Kb/s |
|||||||||||||
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|||||||||||||
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|||||||||||||
|
Video Detection&Alarm |
||||||||||||||
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
|||||||||||||
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|||||||||||||
|
Playback & Backup |
||||||||||||||
|
Sync Playback |
1/4 |
|||||||||||||
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|||||||||||||
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|||||||||||||
|
Backup Mode |
USB Device / Network |
|||||||||||||
|
Network |
||||||||||||||
|
Ethernet |
RJ-45 port (10/100M/1000M) |
|||||||||||||
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|||||||||||||
|
Max. User Access |
128 users |
|||||||||||||
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|||||||||||||
|
Storage |
||||||||||||||
|
Internal HDD |
2 SATA port, up to 8TB |
|||||||||||||
|
Auxiliary Interface |
||||||||||||||
|
USB Interface |
2 ports (1 Rear), USB2.0 |
|||||||||||||
|
RS232 |
1 port, For PC communication & Keyboard |
|||||||||||||
|
RS485 |
1 port, For PTZ control |
|||||||||||||
|
General |
||||||||||||||
|
Power Supply |
DC12V/4A |
|||||||||||||
|
Power Consumption |
15W(without HDD) |
|||||||||||||
|
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|||||||||||||
|
Dimension(W×D×H) |
1U, 375mm×287mm×53mm |
|||||||||||||
|
Weight |
3.2KG(without HDD) |
|||||||||||||
