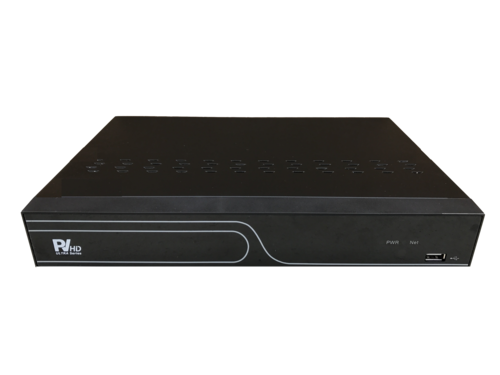

DVR6408A/ACT
-
16CH Hybrid HD 5-in-1 XVR, with AHD/TVI/CVI/CVBS/IP video input, 1U Chassis
-
Embedded Linux OS, H.264 dual-stream
-
Support up to 8CH Coaxial HD + 8CH IP Cam simultaneously
-
Support 1/4/8CH synchronous playback
-
VGA/HDMI sync output, support 1080P HD preview
-
Support 15 times electronic zoom preview and playback image
-
Support EXT, alarm, listening
-
Support DDNS, EMAIL, UPNP, NTP, P2P
-
Support WEB, mobile viewer, Client, CMS
|
Model |
DVR6408A/ACT |
|
|
VIDEO |
|
|
|
Video input |
8ch*3MP(BNC): 4ch main-stream playback |
|
|
4ch*4MP(BNC, channel 1/3/5/7): 4ch main-stream playback |
||
|
8ch*3MP(BNC)+8CH*3MP(IPC): 8ch sub-stream playback or 1ch main-stream playback |
||
|
4ch*4MP(BNC, channel 1/3/5/7)+4CH*4MP(IPC): 4ch sub-stream playback or 1ch main-stream playback |
||
|
Video compression |
H.264 |
|
|
Video output |
VGA/ HDMI sync output |
|
|
Video resolution |
4MP / 3MP / 1080P / 720P / D1 / 4CIF / DCIF / 2CIF / QCIF |
|
|
Video bit rate |
16-8000Kbps |
|
|
Image display |
1/4/6/8/9/16 |
|
|
Snapshot |
Support(JPEG) |
|
|
Motion detection |
396(22*18) surveyed area can be set in every screen and multi sensitivity adjustable |
|
|
AUDIO |
|
|
|
Audio compression |
G.711A |
|
|
Audio input |
4CH, RCA port |
|
|
Audio output |
1CH, RCA port |
|
|
2-way talk |
N/A |
|
|
VIDEO RECORDING AND PLAYBACK |
||
|
Video frame rate |
8ch mode: 3MP@10fps 1080P@15fps 720P@25fps real-time Analogue/IPC@25fps real-time |
|
|
4ch mode: 4MP@15fps 3MP@10fps 1080P@25fps real-time 720P@25fps real-time Analogue/IPC@25fps real-time |
||
|
Record mode |
Manual / Timing MD / Alarm Exception / MD or Alarm / MD and Alarm |
|
|
Local playback |
4ch Analogue/Hybrid(mixed): 1ch sync playback (main-stream) 4/8ch sync-playback (sub-stream) |
|
|
Search method |
Time, Calendar, Event, Channel |
|
|
Video playback |
Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback |
|
|
STORAGE AND BACKUP |
||
|
Interface |
2 SATA |
|
|
HDD capacity |
Single largest 6T |
|
|
Record saving |
Local HDD, network |
|
|
Backup method |
Network, USB storage device, USB recorder |
|
|
NETWORK |
|
|
|
Network protocol |
TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF |
|
|
EXT. INTERFACE |
|
|
|
Video input |
8CH BNC port (1.0Vp-p,75Ω) |
|
|
Network interface |
RJ45 10M/100M Ethernet Port |
|
|
Alarm input |
4CH |
|
|
Alarm output |
1CH |
|
|
RS-485 |
1 RS485 port |
|
|
USB port |
2 USB2.0 |
|
|
GENERAL |
|
|
|
Power supply |
DC12V/4A |
|
|
Power consumption |
1W (Without HDD) |
|
|
Operation temperature |
-10°C ~ 55°C/10﹪-90﹪ |
|
|
Dimension(mm) |
360(L)*262(W )*48(H) |
|
|
Weight/PCS(g) |
1.5Kg |
|
|
1. BNC Video Input |
2. Audio Input |
|
3. Audio Output |
4. HDMI Video Output |
|
5. VGA Video Output |
6. RJ45 |
|
7. USB2.0 Port |
8. Power Switch |
|
9. Alarm Input |
10. Alarm Output |
|
11. RS485 |
12. DC12V |
