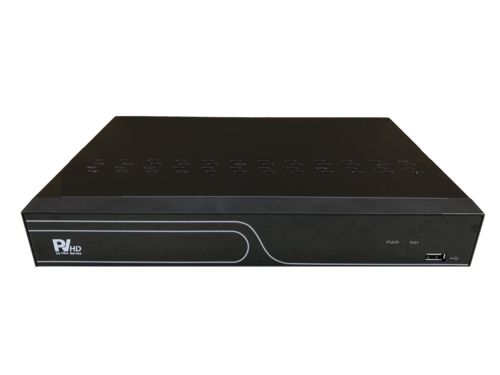

DVR6404A/ACT

DVR6404A/ACT

4 Channel Coaxial HD 5-in-1 XVR





  • 8CH Hybrid HD 5-in-1 XVR, with AHD/TVI/CVI/CVBS/IP video input, 1U Chassis

  • Embedded Linux OS, H.264 dual-stream

  • Support up to 4CH Coaxial HD + 4CH IP Cam simultaneously

  • Support 4CH synchronous playback

  • VGA/HDMI sync output, support 1080P HD preview

  • Support 15 times electronic zoom preview and playback image

  • Support EXT, alarm, listening

  • Support DDNS, EMAIL, UPNP, NTP, P2P

  • Support WEB, mobile viewer, Client, CMS



Model

DVR6404A/ACT

VIDEO



Video input

4ch*2MP(BNC): 4ch main-stream playback

2ch*4MP(BNC, channel 1&3): 2ch main-stream playback

4ch*2MP(BNC)+4CH*2MP(IPC): 4ch sub-stream playback or 1ch

main-stream playback

2ch*4MP(BNC, channel 1&3)+2CH*4MP(IPC): 2ch sub-stream playback or 1ch main-stream playback

Video compression

H.264

Video output

VGA/ HDMI sync output

Video resolution

4MP / 3MP / 1080P / 720P / D1 / 4CIF / DCIF / 2CIF / QCIF

Video bit rate

16-8000Kbps

Image display

1/4/6/8/9

Snapshot

Support(JPEG)

Motion detection

396(22*18) surveyed area can be set in every screen and multi sensitivity adjustable

AUDIO



Audio  compression

G.711A

Audio input

4CH, RCA port

Audio output

1CH, RCA port

2-way talk

N/A

VIDEO RECORDING AND PLAYBACK

Video frame rate

4ch mode:

1080P@15fps real-time

720P@25fps real-time

Analogue/IPC@25fps real-time

2ch mode:

4MP@15fps

3MP@10fps

1080P@25fps real-time

720P@25fps real-time

Analogue/IPC@25fps real-time

Record mode

Manual / Timing MD / Alarm Exception / MD or Alarm / MD and Alarm

Local playback

2/4ch Analogue/Hybrid(mixed): 1ch sync playback (main-stream)

2/4ch sync-playback (sub-stream)

Search method

Time, Calendar, Event, Channel

Video playback

Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback

STORAGE AND BACKUP

Interface

2 SATA

HDD capacity

Single largest 6T

Record saving

Local HDD, network

Backup method

Network, USB storage device, USB recorder

NETWORK



Network protocol

TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF

EXT. INTERFACE



Video input

4CH BNC port (1.0Vp-p,75Ω)

Network interface

RJ45 10M/100M Ethernet Port

Alarm input

4CH

Alarm output

1CH

RS-485

1 RS485 port

USB port

2 USB2.0

GENERAL



Power supply

DC12V/4A

Power consumption

1W (Without HDD)

Operation temperature

-10°C ~ 55°C/10﹪-90﹪

Dimension(mm)

360(L)*262(W )*48(H)

Weight/PCS(g)

1.5Kg






1.         Audio Output

2.         BNC Video Input

3.         Audio Input

4.         HDMI Video Output

5.         VGA Video Output

6.         RJ45

7.         USB2.0 Port

8.         Alarm Input

9.         Alarm Output

10.   RS485

11.   DC12V

12.   Power Switch
