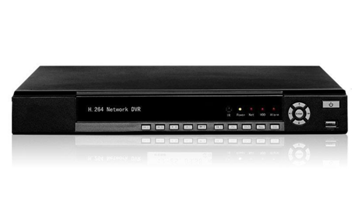

DVR6404/ACT-M

DVR6404/ACT-M

4 Channel Coaxial HD 5-in-1 XVR





  • 4CH 5-in-1 XVR, AHD/TVI/CVI/CVBS/IP video input, mini 1U Chassis

  • Embedded Linux OS, H.264 dual-stream

  • Support up to 4CH Coaxial HD + 4CH IP Cam simultaneously

  • Support 1/4CH synchronous playback

  • VGA/HDMI sync output, support 1080P HD preview

  • Support 15 times electronic zoom preview and playback image

  • Support EXT, alarm, listening

  • Support DDNS, EMAIL, UPNP, NTP, P2P

  • Support WEB, mobile viewer, Client, CMS



Model

DVR6404/ACT-M

VIDEO

Video compression

H.264

Video output

VGA/ HDMI sync output: 1920X1080P@60Hz, 1440X900P@60Hz,
1366x768P@60Hz, 1280x1024P@60Hz, 1024x768@60Hz, 800x600@60Hz

Video resolution

4MP / 3MP / 1080P / 960P / 720P / D1 / 4CIF / DCIF / 2CIF / CIF / QCIF

Video input

4CH@ 2MP (BNC): 4CH main-stream playback

2CH@ 4MP (BNC 1/3): 2CH main-stream playback

4CH@ 2MP (BNC) + 4CH@ 2MP (IPC): 4CH sub-stream playback or 1CH main-stream playback

2CH@ 4MP (BNC 1/3) + 2CH@ 4MP (IPC): 2CH sub-stream playback or 1CH main-stream playback

Video bit rate

16-8000Kbps

Image display

1/4/6/8/9

Snapshot

Support(JPEG)

Motion detection

396(22*18) surveyed area can be set in every screen and multi sensitivity adjustable

AUDIO

Audio compression

G.711A

Audio input

4CH, RCA port

Audio output

1CH, RCA port

2-way talk

N/A

VIDEO RECORDING & PLAYBACK

Video frame rate

4ch mode:

1080P@15fps

720P@25fps real-time

Analogue/IPC@25fps real-time

2ch mode:

4MP@15fps

3MP@10fps

1080P@25fps real-time

720P@25fps real-time

Analogue/IPC@25fps real-time

Record mode

Manual / Timing / MD / Alarm Exception / MD or Alarm / MD and Alarm

Local playback

2/4ch Analogue/Hybrid(mixed): 1ch sync playback (main-stream)

2/4ch sync-playback (sub-stream)

Search method

Time, Calendar, Event, Channel

Video playback

Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback

STORAGE & BACKUP

Interface

1 SATA

HDD capacity

Single largest 6T

Record saving

Local HDD, network

Backup method

Network, USB storage device, USB recorder

NETWORK

Network protocol

TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF

Interface protocol

ONVIF, RTSP

Mobile surveillance

Apple/Android

Browser

IE, Chrome, Firefox, Safari

Intelligent detection

Motion detection / video loss / video tampering

INTERFACE

Video input

4CH BNC port (1.0Vp-p,75Ω)

Network interface

RJ45 10M/100M Ethernet Port

Alarm input

4CH

Alarm output

1CH

RS-485

1 RS485 port

USB port

2 USB2.0

GENERAL

Power supply

DC12V/4A

Power consumption

<10W (Without HDD)

Operation temperature

-10°C ~ 55°C/10﹪-90﹪

Dimension(mm)

300(L)*209(W )*48.5(H)

Weight/PCS(g)

1.5Kg





1.        Audio Output

2.         BNC Video Input

3.        Audio Input

4.         HDMI Video Output

5.        VGA Video Output

6.         RJ45

7.        USB2.0 Port

8.         Alarm Input/Output

9.        RS485

10.       DC12V

11.      Power Switch
