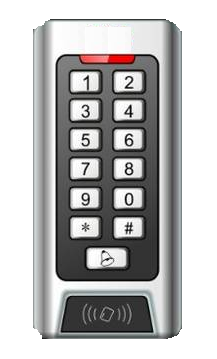

AC-S600/EM
- Waterproof, conforms to IP68
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
|
Operating Voltage |
DC 12V±10% |
|
User Capacity |
2000 |
|
Card Reading Distance |
3-6 cm |
|
Active Current |
＜60mA |
|
Idle Current |
25±5 mA |
|
Lock Output Load |
Max 3A |
|
Alarm Output Load |
Max 20A |
|
Operating Temperature |
-45℃～60℃ |
|
Operating Humidity |
10%- 90% RH |
|
Waterproof |
Conforms to IP68 |
|
Adjustable Door Relay time |
0 -99 seconds |
|
Adjustable Alarm Time |
0- 3 minutes |
|
Wiegand Interface |
Wiegand 26 bit |
|
Wiring Connections |
Electric Lock, Exit Button, External Alarm,External reader |
