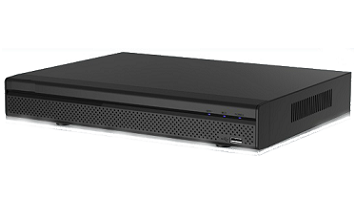

DVR5116H/CVI-S2

DVR5116H/CVI-S2

16 Channel 1080P HD-CVI Tribrid Mini DVR





    • Support HD-CVI/IP/Analogue video inputs
    • H.264 dual-stream video compression
    • All channel 1080P@12.5fps or 720P @25fps recording per channel
    • HDMI / VGA simultaneous video output
    • 4/8/16 channel synchronous playback, GRID interface & smart search
    • Support 1 SATA HDD up to 4TB, 2 USB2.0
    • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS



                Model

                DVR5116H/CVI-S2

                System

                Main Processor

                Embedded processor

                Operating System

                Embedded LINUX

                Video

                Input

                16 channel, BNC

                  Standard

                Analog

                PAL(625Line,50f/s)

                HDCVI

                1080P/720P HDCVI Camera

                IP

                1080P/720P/D1/CIF IP Camera

                Audio

                Input

                1 channel, RCA

                Output

                1 channel, RCA

                Two-way Talk

                Reuse audio input/output channel 1

                Display

                Interface

                1 HDMI, 1 VGA

                Resolution

                1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

                Display Split

                1/4/8/9/16

                Privacy Masking

                4 rectangular zones (each camera)

                OSD

                Camera title, Time, Video loss, Camera lock, Motion detection, Recording

                Recording

                Video/Audio Compression

                H.264/G.711

                Record Rate

                Main Stream:

                1080P(1~15fps)/ 720P/960H/D1 (1~25/30fps)

                Extra Stream

                CIF/QCIF(1~25/30fps), D1(1~6/7fps)

                Bit Rate

                96~4096Kb/s

                Record Mode

                Manual, Schedule(Regular(Continuous), MD), Stop

                Record Interval

                1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

                Video Detection & Alarm

                Trigger Events

                Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot,
                Buzzer & Screen tips

                Video Detection

                Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

                Playback & Backup

                Sync Playback

                1/4/9/16

                Search Mode

                Time/Date, MD & Exact search (accurate to second)

                Playback Functions

                Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

                Backup Mode

                USB Device/Internal SATA burner/Network

                Network

                Ethernet

                RJ-45 port (10/100M/1000M)

                Network Functions

                HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

                Max. User Access

                128 users

                Smart Phone

                iPhone, iPad, Android, Windows Phone

                Storage

                Internal HDD

                1 SATA port, up to 4TB

                Auxiliary Interface

                USB Interface

                2 ports(1 Rear), USB2.0

                RS485

                1 port, For PTZ Control

                General

                Power Supply

                DC12V/3A

                Power Consumption

                10W(without HDD)

                Working Environment

                -10°C ~+55°C / 10%~90%RH / 86~106kpa

                Dimension(W×D×H)

                Mini 1U, 325mm×255mm×55mm

                Weight

                1.5KG(without HDD)
