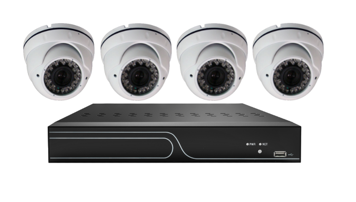

K-NVR6304S-4DT

4CH 1080P REALTIME IP KIT





  • 8CH 5MP full real time Mini 1U NVR kit with 3MP Full RealTime IP Camera
  • IP cameras get power from NVR via network cable
  • Standard ONVIF, snapshot, alarm link E-mail send
  • Support synchronous video, playback, remote monitor, storage
  • One push to connect IPC automatically, plug and play
  • Support Timing synchronization manually and automatically, drag & drop any channel random
  • VGA/HDMI sync output, support 1080P HD preview
  • Support DDNS, EMAIL, UPNP, NTP, P2P
  • Support WEB, mobile viewer, CMS
  • Lighting-proof, RJ45



MODEL

K-NVR6304S-4DT

CAMERA

Pick-up Devices

1/2.8" SONY 3.21MP CMOS

Effective Pixel

1920(H) x 1080(V)

Min. illumination

0 Lux (IR ON)

Electronic shutter

Auto/ Manual(1/25~1/10000), FLK

Day/Night

ICR switch, Auto, Colour,  B/W, EXT

Lens

3.6mm

IR distance

30M

NVR

Video input

8 channel 5MP HD

Video Compression

H.264

Video output

HDMI/VGA

1920x1080, 1440x900,1280x1024, 1280x720, 1024x768x 800x600

Image display

1/4/9

Privacy masking

4 rectangular zones (each camera)

VIDEO RECORDING AND PLAYBACK

Resolution

1080P(1920*1080) / 720P (1280*720) / 960H(960*576) / D1 / 4CIF / QCIF

Record rate

Main Stream: 1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra Stream: CIF/QCIF(1~25/30fps)

Bit rate

16-8000Kbps

Record mode

Manual, Alarm, MD, Regular

Syn. playback

4ch 1080P

Backup mode

USB device/Network

NETWORK

Ethernet

RJ45 (10/100M)

Network functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

PoE Port

4ch PoE

Internal HDD

1 SATA, up to 6TB

USB interface

2 ports, USB2.0

GENERAL



Power supply

DC48V 1.2A

Rear Panel
