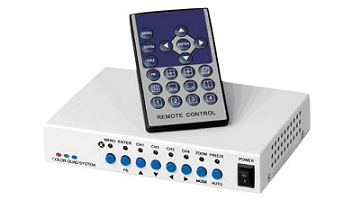

QUAD-404S

QUAD-404S

4-Channel Color Digital Quad Processor







MODEL

QUAD-404S

Refresh Speed

NTSC: 50f/sec, PAL: 60f/sec

Picture Pixels

NTSC: 720 x 576, PAL: 720 x 480

Signal Standard

NTSC/PAL Selectable

Camera Signal Input

4 Channel, Composite 1.0Vp-p75Ω, BNC

Camera Signal Output

Output to Monitor, Composite, 1.0Vp-p75Ω,BNC
Output to Quad, Composite, 1.0Vp-p75Ω,BNC
Output to VCR, Composite, 1.0Vp-p75Ω,BNC

Output Features

Full Screen/Quad /Freeze/Auto Switch/PIP

Relevant Humidity

<=95%, No Condensation

Sequential Switching Time

1-99 seconds, adjustable skip feature

Channel Name Display

Available

Clock Function

Year/Month/Day Display

Supply Voltage

DC12V

Operating Current (Max)

800mA

Operating Temperature

-10℃ ~ +50℃

Dimension(L x W x H)mm

142mm x 27mm x 98mm

Net Weight

800g

Controller

Available
