AL-PHK901W

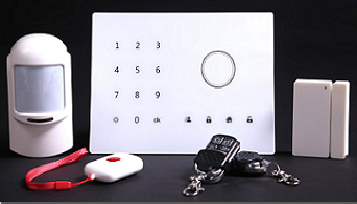

AL-PHK901W Alarm control panel is combine technology with stylish design into one. Whoever has it for
the house, it will bring absolute security and sense of fashion.

D.I.Y Installation & Easy Operation
AL-PHK901W is a D.I.Y GSM/SMS home alarm system which enable to arm/disarm, progran alarm numbers
through text message command directly on cell phone or App on smart phones.
Direct Phone Call
Through the touch keypad on the main panel, users can setup alarm phone numbers, and inquiry
balance money of the SIM card in alarm panel, you can make phone calls directly and do all the
operations for the system.

Built-in Siren
AL-PHK901W comes with internal siren, user can D.I.Y to setup the siren's alarming time between 0 to 245s.

24 Wireless Alarm Zones
AL-PHK901W comes with 24 wireless alarm zones, 6 fire alarm zones and 2
wired alarm zones, user can add additional sensors to each of these
zones as your mind. It is able to program 20 remote controllers or panic
buttons for your necessary.

iCMS App is available for free downlad on Apple stores and Google play.
Simple registration through SIM card number takes you into a convenient and real-time control for
your home alarm systems.

1. Wireless frequency: 315MHz/433MHz
2. GSM frequency: 850/900/1800/1900MHz
3. Alarm response time: ≤10s (GSM signal in normal)
4. Power requirements
Input: AC100- 240V 50Hz/60Hz Output: DC 12V/1A
Working consumption: < 0.6W
Backup battery: DC7.4V/800mAh
Backup battery working hours: ≥10 hours
5. Working condition
Temperature: -20～+55℃ humidity: ≤90% (non-condensation)
6. Size: 187L*130W*27H mm
7. Record time: 10s
